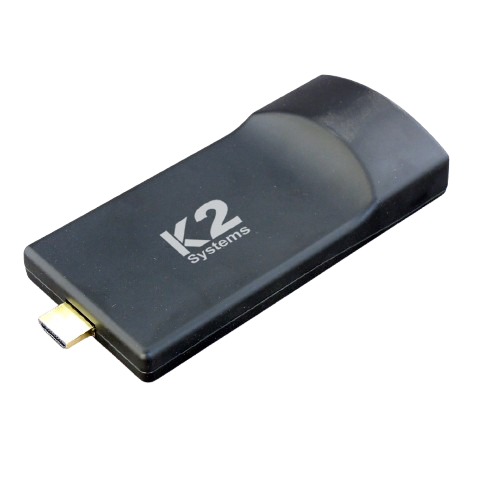

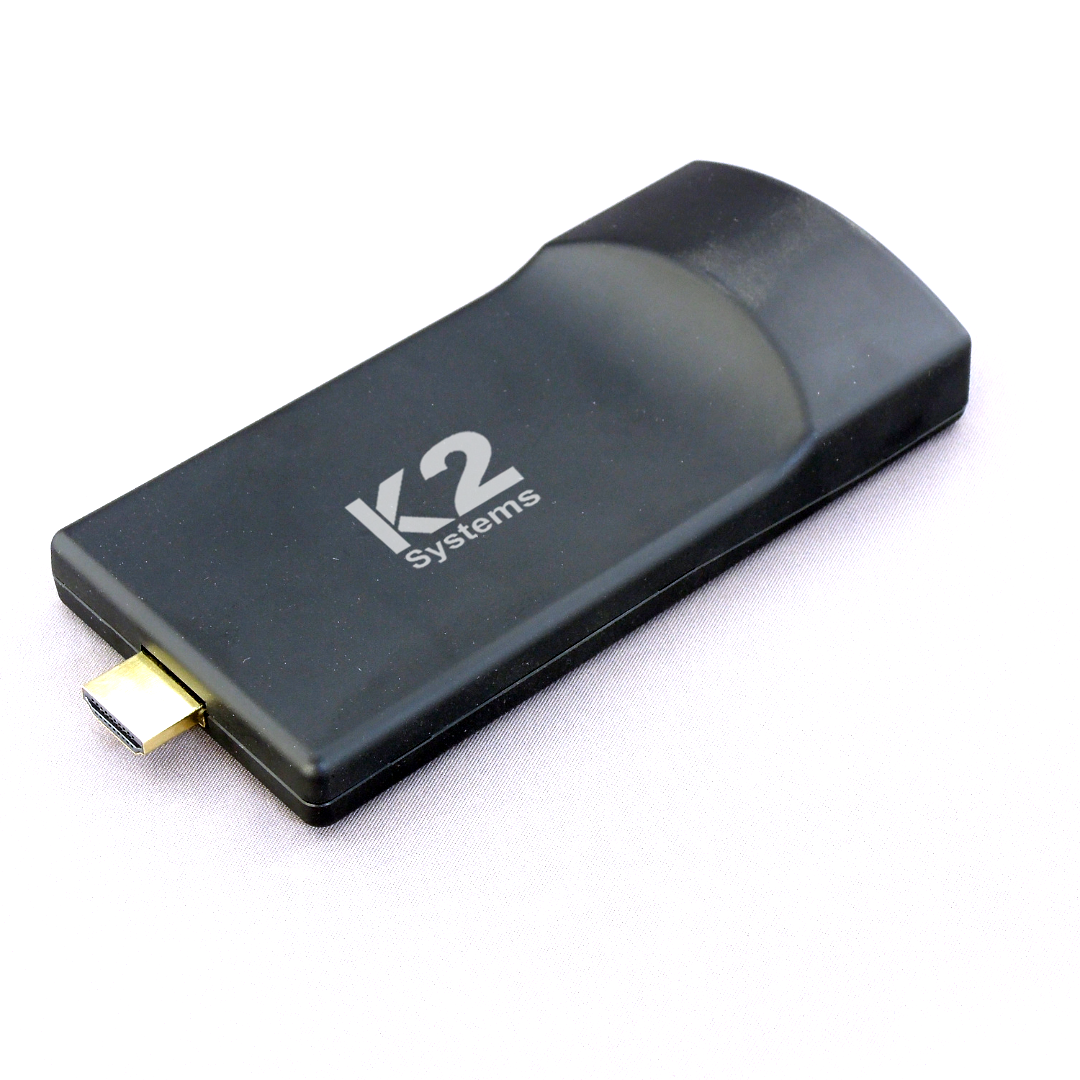

K2 QC
Andriod Media Player

  • K2QC system featured with Allwinner H616 ARM quad core processor and powered by Android 10.0 Q
  • It can be used as digital signage, hordings, Android PC and in many other application where the information is displayed over screen
View DataSheet Download Catalog
Message successfully sent! Our team will get back to you shortly!
Unable to send your message.



ARM Cortex-A53



DDR3 2GB



16 GB



Android Q 10.0

Datasheet

Processor

Quad core ARM Cortex-A53, 64-bit

OS

Android Q 10.0

GPU

G31 MP2

Display Ports

HDMI (4K@60Hz) x 1

RAM

2 GB DDR3, Support upto 4GB

USB

USB 2.0 x 1

Storage

16 GB eMMc

Audio

Required Information

Power Adapter

5V/2A

Network Connectivity

RJ45 interface 100M/1G adaptive 802.11 b/g/n/ac WiFi 2.5GHz/5GHz Bluetoooth 4.1

mounting

Velcro for mounting

Product Size

150mm x 61 mm x 24mm

Certificates

CE / FCC / ROHS

Product Weight

100 gms

Warranty

12 Months

Packing Content

Wi-Fi/Bluetooth Antenna, USB 2.0 micro cable,
HDMI Cable Male to Female, Velcro for mounting

Audio

AMR, MP1/MP2/MP3, OGG, WAV, AAC,APE, FLAC, DSD, G729, ALAC

Video

H.265 Main10@L5.1 decoder up to 4K@60fps
or 6K@30fps, VP9 Profile 2 decoder up to
4K@60fps,H.264 BP/MP/HP@L4.2 decoder up to
4K@30fps, Multi-format 1080p@60fps video
playback formats, including H.264 BP/MP/HP,
H.263 BP, VP8, MPEG-1 MP/HL, MPEG-2 MP/HL,
MPEG-4 SP/ASP@L5, AVS+/AVS JiZhun,
WMV9/VC1, etc

Application

Retail Stores Digital Display

If it catches the eyes it is more likely to sell. Hence, introducing the most cost-effective and dynamic way of captivating your audience; Digital Displays. Digital displays are proven to be the next-gen medium for sales for the retail sector. Internationally, these displays are widely used and are eventually growing on brands in India. The glamour brought by these digital displays elevates the brand image in the mind of the customers.

 Manage Content Easily | Provides Real-time Data | Engages the Audience

Conference Room Display

Boardrooms are an integral part of the company, a place where ideas are discussed, achievements are shared. Any boardroom display solution or conference room solution requires a display that will be a perfect canvas to showcase these things.

LED Video Wall

Enhance your LED video wall experience with our high-performance Android media player. Enjoy seamless playback, remote content management, and ultra-smooth visuals for dynamic digital displays. Perfect for advertising, events, and corporate signage!

Easy to Use & Manage | Scalable for Any Setup | High Reliability

Outdoor Digital Signage

In this fast-evolving world, it is very necessary to catch an eye among thousands of ads being displayed

More revenue per site | Easy Installation | Efficient engineering

Transportation Digital Displays

Airports, train stations, metro stations, bus stations, etc. are the most populated places in the country. Perfect for digital signage, schedule information display, queue management & more.

Updates on Real-Time | Easy Queue Management | Seamless Display
